INFINAM® PA

INFINAM® PA is a 3D-printable, polyamide 613-based, high-performance powder, especially developed for powder bed fusion (PBF) 3D printing technology.

Polyamide 613, also known as PA613, is a thermoplastic material combining advantages of short and long chain polyamides. In this regard, Evonik's PA613 powder material takes the properities of PA6 (short chain) like higher heat resistance, higher stiffness in dry condition and good impact resistance, and combines them with with the properities of PA12 (long chain) like lower water uptake, higher chemical resistance and good mechanical behavior.

• High temperature resistance
• Low water uptake
• Excellent mechanical properties
• Excellent surface resolution and feature detail
• Good resistance against numerous chemicals

Evonik’s INFINAM® PA 6005 P (PA613) powders feature high mechanical strength as well as excellent chemical and temperature resistance. Its heat deflection temperature (HDT B) is around 195°C. Compared to other difficult-to-process materials of the polyamide 6 family, INFINAM® PA 6005 P has an impressively low water absorption rate - less than 3 percent - which has positive effects on both the processability in the 3D printing process, and the dimensional stability of the printed component.

INFINAM® PA 6005 P is a natural colored fine powder especially for the use in additive fabrication. Our product is suitable for manufacturing of functional prototypes, manufacturing of individual units as well as serial parts. INFINAM® PA 6005 P is especially suitable for powder bed fusion technologies.

Evonik’s INFINAM® PA 6013 P and INFINAM® PA 6014 P powders feature a particle core of carbon black. Created through Evonik’s specially engineered precipitation process, a relatively high amount of carbon black is encapsulated by PA12, resulting in a powder that has excellent processability in SLS (selective laser sintering), and a true color without the additional step of dyeing.

Like all of Evonik’s PA12 powders for 3D printing, INFINAM® PA 6013 P and INFINAM® PA 6014 P feature high mechanical and chemical resistance, great impact strength, and excellent surface resolution. These carbon black polymer powders are especially well suited for applications in the aerospace and automotive industries.

INFINAM® PA 6005 P is a powder from Evonik based on polyamide 613 and is designed for 3D printing technologies such as selective laser sintering (SLS). The polymer is produced using Evonik's own special precipitation process at the Marl Chemical Park in Germany and is suitable for 3D applications in the higher temperature range.

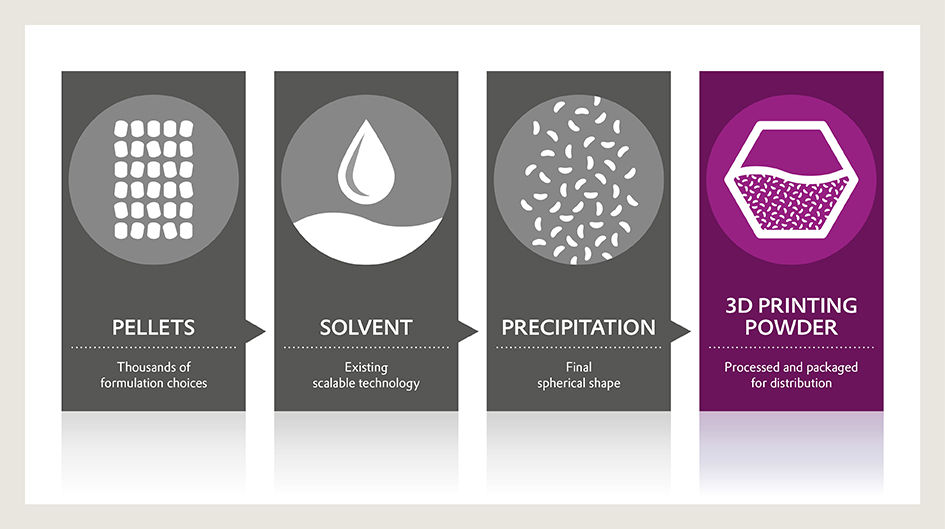

Precipitation is a purely physical process that Evonik uses on a large scale for its powder production. Polyamide 613 granules are dissolved in a suitable solvent under defined pressure and temperature, and the resulting solution is then subjected to an equally controlled cooling process. During this process, the solvent separates again from the polymer, and the latter precipitates to form a fine powder of Evonik's INFINAM® PA613 branded 3D printing material.
