MetAMINO® ATLAS Edition 3

Trial insight

Alternative image

Effects of DL-methionine and liquid methionine hydroxy analogue in black soldier fly larvae production

Trial conducted by ENORM Biofactory A/S, Denmark

In this trial, supplementation of DL-methionine (DL-Met) improved black soldier fly larvae biomass gain and nitrogen retention whereas MHA-FA supplementation was ineffective. Nitrogen losses were significantly reduced by graded supplementation of DL-Met and MHA-FA. In fact, bioefficacy of MHA-FA relative to DL-Met was only 43%. DL-Met is more effective than MHA-FA as feed supplement to improve the black soldier fly larvae production system.


Toke Munk Schou, Head of R&D at ENORM Biofactory A/S, Denmark
While there is still much to learn about the optimization of black soldier fly larvae nutrition, it becomes clear with this trial that the 65% bioefficacy concept is successfully applicable for these animals as well.
Toke Munk Schou

Head of R&D, ENORM Biofactory

The objective of this study was to evaluate the impact of incremental supplementation of either DL-Met or MHA-FA on performance and nutrient utilization of black soldier fly larvae.

Location: ENORM Biofactory A/S, Flemming, Denmark
Project team leaders: Dr. Andreas Lemme, Toke Munk Schou, Nastasia Krog Noer

AnimalsSeed larvae/tray
(16.8±0.66g dry matter (DM) (±standard error of the mean, SEM)),
DM content ~37.5%; 6 trays/treatment
DesignSimultaneous dose response trial
Housing800 mm x 600 mm x 15 mm trays
Diets

Based on brewery by-products, 18.3% crude protein (CP) in DM

1) Negative control: Basal, unsupplemented substrate (BS); 0.66% Met+Cys in DM

2) Treatment 2a,b,c: BS + 0.20, 0.40, or 0.60% DL-Met

3) Treatment 3a,b,c: BS + 0.31, 0.62, or 0.92% MHA-FA (154% of DL-Met, applied 65% bioefficacy)

Feeding12.35 kg substrate/tray (2.93 kg DM); ad libitum for 20 days
Parameters

Biomass gain; mass balance calculations: amino acid & nitrogen retention,
nitrogen losses (lost in form of ammonia as neither captured in biomass nor in frass)

Duration20 days

Trial results

  • DL-methionine (DL-Met) supplementation increased biomass gain numerically by up to 7.4%, whereas supplementation of MHA-FA had no impact on biomass gain (Figure 1).
  • Supplementation of 0.60% DL-Met significantly (<0.05) increased amino acid retention from substrate by 5 %-points, while this effect was less pronounced with MHA-FA supplementation (Figure 2).
  • Nitrogen utilization in % of substrate was significantly improved with 0.60% DL-Met, but supplementation of MHA-FA had no effect (Figure 3).
  • Nitrogen losses, which are basically ammonia losses, were significantly (p<0.05; Figure 4) and linearly (Figure 5) reduced with graded product supplementation. MHA-FA was 43% as effective as DL-Met.

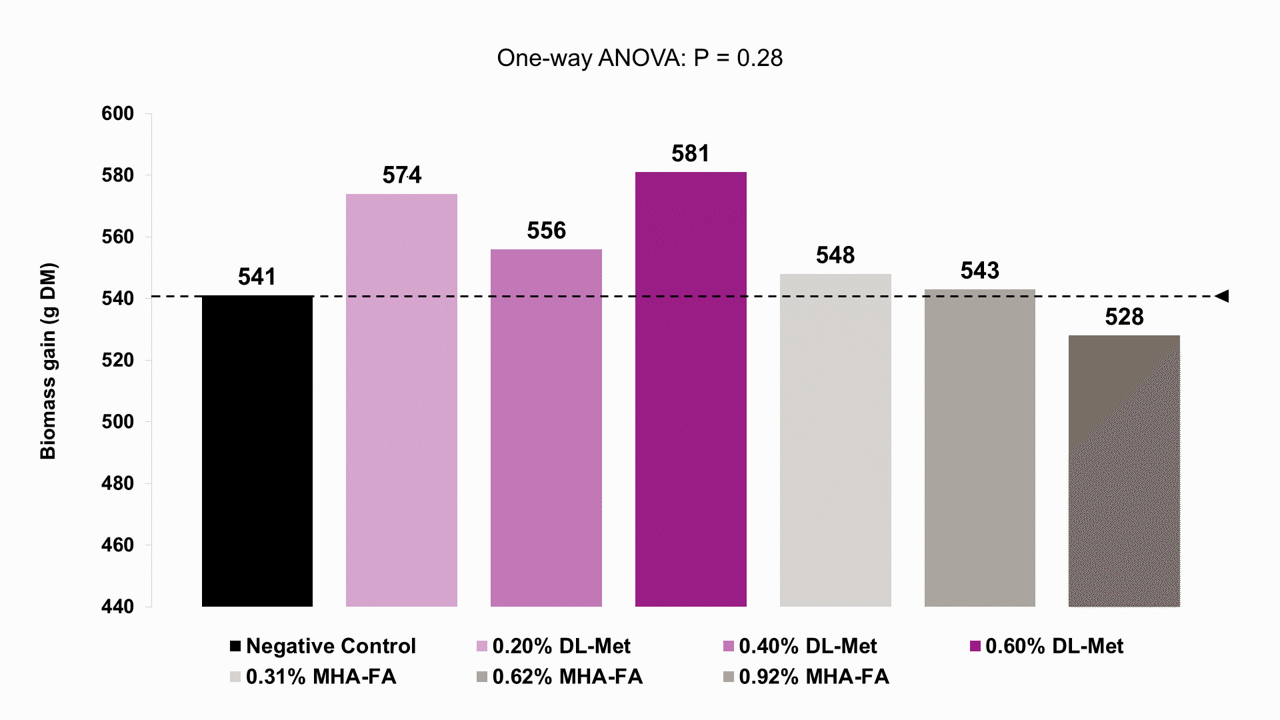

Black soldier fly biomass gain on a dry matter basis (DM) in 20 days

Alternative image

Amino acid retention in black soldier flies

Alternative image

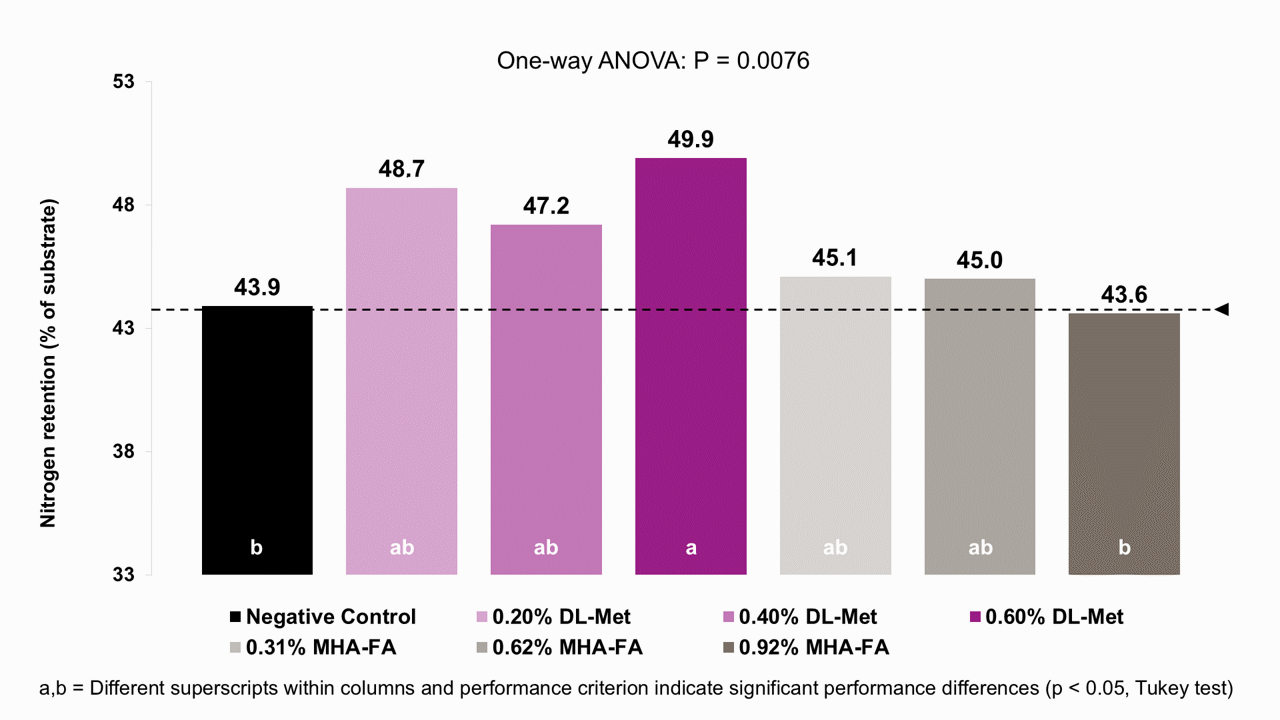

Nitrogen retention in black soldier flies

Alternative image

Nitrogen losses (ammonia) in black soldier flies

Alternative image

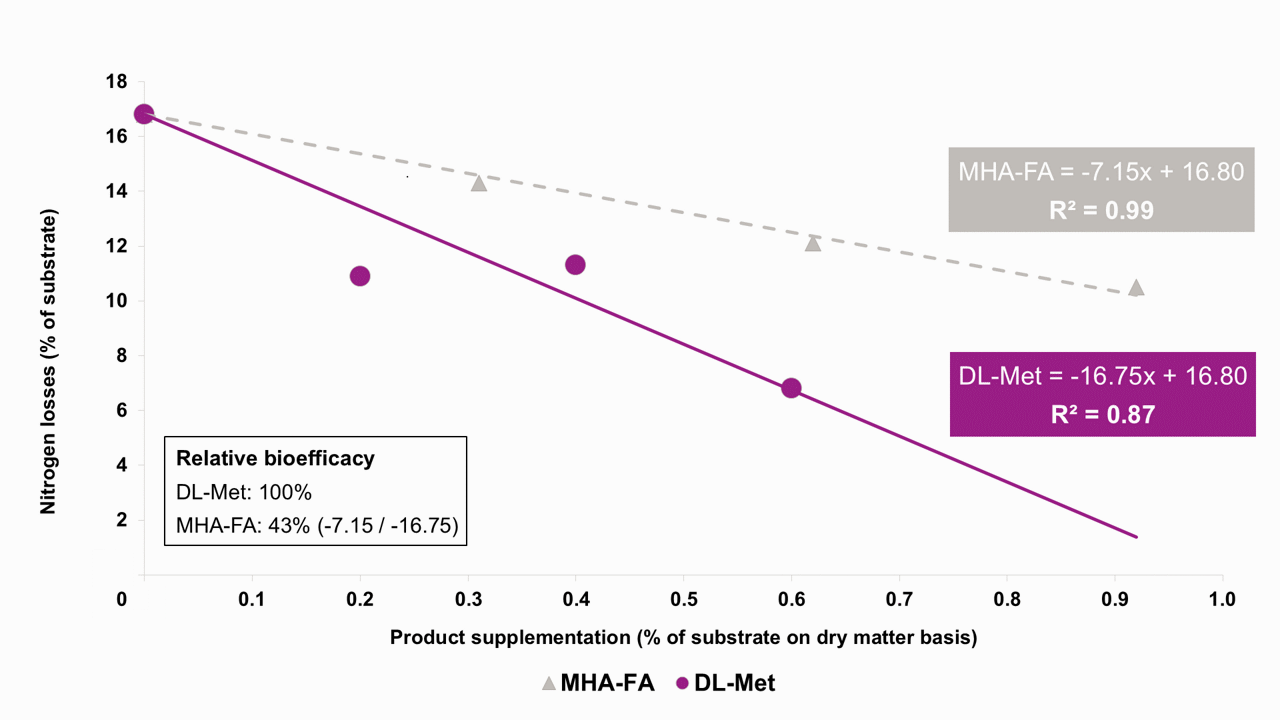

Slope-ratio analysis to determine the bioefficacy of MHA-FA relative to DL-Met based on nitrogen losses

Alternative image
