MetAMINO® ATLAS Edition 3

Trial insight

Alternative image

Radiolabelled DL-Met and MHA-Ca to elucidate the metabolic and nutritional response of two commercial methionine sources in Nile tilapia juveniles

The trial was conducted by the Centre of Marine Sciences of Algarve (CCMAR), Portugal,
in indoor tanks using radiolabeled DL-methionine (DLM) and methionine-hydroxy-analogue calcium salt (MHA-Ca)

Published in:

- British Journal of Nutrition, 2022; 127(2): 202–213. “Metabolic and nutritional responses of Nile tilapia juveniles to dietary methionine sources”

- Fish Farming Technology: International Aqua Feed, October 2021. “Growth and metabolic response of juvenile Nile tilapia demonstrate DL-Methionine is superior to MHA-Ca”

- Evonik Animal Nutrition Aquaculture Facts & Figures #1644

The study demonstrated that DL-methionine (DLM) is a more efficient methionine source than methionine hydroxy analogue calcium salt (MHA-CA) for Nile tilapia, showing superior outcomes in growth, feed efficiency, nitrogen utilization, and body protein synthesis. The radiolabeled Met study further confirmed that MetAMINO® (DLM) is more effectively incorporated into body protein, namely the liver, viscera, muscle, head, heart, kidney, bones and fins, compared to the MHA product, whereas a greater proportion of MHA-Ca was catabolized and excreted into the water.


Dr. Karthik Masagounder Aqua Expert and Regulatory Trial Manager Evonik Operations GmbH, Germany
DLM is a more efficient methionine source than MHA for Nile tilapia, showing superior outcomes in growth, feed efficiency, nitrogen utilization, and body protein synthesis, while MHA-Ca showed higher catabolism, indicating less metabolic efficiency.
Dr. Karthik Masagounder

Aqua Expert and Regulatory Trial Manager Evonik Operations GmbH, Germany

Trial I – Performance response:
Evaluates how Met sources (DLM vs. MHA-Ca) affect growth performance, feed conversion and nitrogen utilization of Nile tilapia when supplemented on an equimolar basis

Trial II – Metabolic response:
Elucidates metabolic utilization of Met sources on the fish body protein synthesis based on ¹⁴C-labelled Met sources.

Location: Centre of Marine Sciences of Algarve (CCMAR), Portugal
Project team leaders: Karthik Masagounder1, Sofia Engrola2, Rita Teodósio2,3, Miguel Cabano2, Rita Colen2 and Cláudia Aragão2,3

1 Evonik Operations GmbH, Hanau‐Wolfgang, Germany
2 Centre of Marine Sciences (CCMAR), Faro, Portugal
3 Universidade do Algarve, Faro, Portugal

AnimalsNile tilapia, 2.30 g initial body weight ; 50 fish per replicate tank
Design3 tanks (100 L) per diet; 50 fish per tank
Diets

Basal: Diet without supplemental Met

DLM: Basal + 1.5 g/kg DL-Met

MHA: Basal + 1.8 g/kg MHA-Ca (equal to DL-Met dose on a molar basis)

FeedingThree times a day over a 57-days period
Parameters

Final body weight, total body weight gain of all fish (biomass gain) per tank, Feed conversion ratio (FCR),
protein efficiency ratio, nitrogen gain and nitrogen loss

Duration57 days

Location: Centre of Marine Sciences of Algarve (CCMAR), Portugal
Project team leaders: Karthik Masagounder1, Sofia Engrola2, Rita Teodósio2,3, Miguel Cabano2, Rita Colen2 and Cláudia Aragão2,3

1 Evonik Operations GmbH, Hanau‐Wolfgang, Germany
2 Centre of Marine Sciences (CCMAR), Faro, Portugal
3 Universidade do Algarve, Faro, Portugal

AnimalsNile tilapia, 25-28 g
DesignAt end of 57-d feeding trial, 10 or 11 fish from each tank were transferred to individual metabolic chambers (2-L water)
(n=31 fish for DLM; n=32 fish for MHA)
Diets

DLM: Basal + ¹⁴C-DL-Met

MHA: Basal + ¹⁴C-MHA-Ca

FeedingIndividually fed with Met labelled feed
Parameters

1, 2, 3, 4 or 6 h post-feeding (n = 6-7 fish for each diet and period),
fish were euthanized, and radioactivity (DPM, disintegrations per minute) of labelled Met source
in the water and different body parts were measured.

Trial results

Trial I: Performance response of Nile tilapia to Met sources

  • DLM diet significantly improved growth, FCR, and protein efficiency ratio compared to the basal diet. MHA diet showed only numerical improvements in performance, with no significant difference from the basal treatment.
  • Calculated on total fish weight gain per tank, the DLM diet produced 214 g more biomass gain whereas the MHA diet produced only 124 g more biomass gain, both compared to the basal diet. Thus, the MHA diet produced 42% less biomass gain than the DLM diet when compared with the basal treatment.
Alternative image

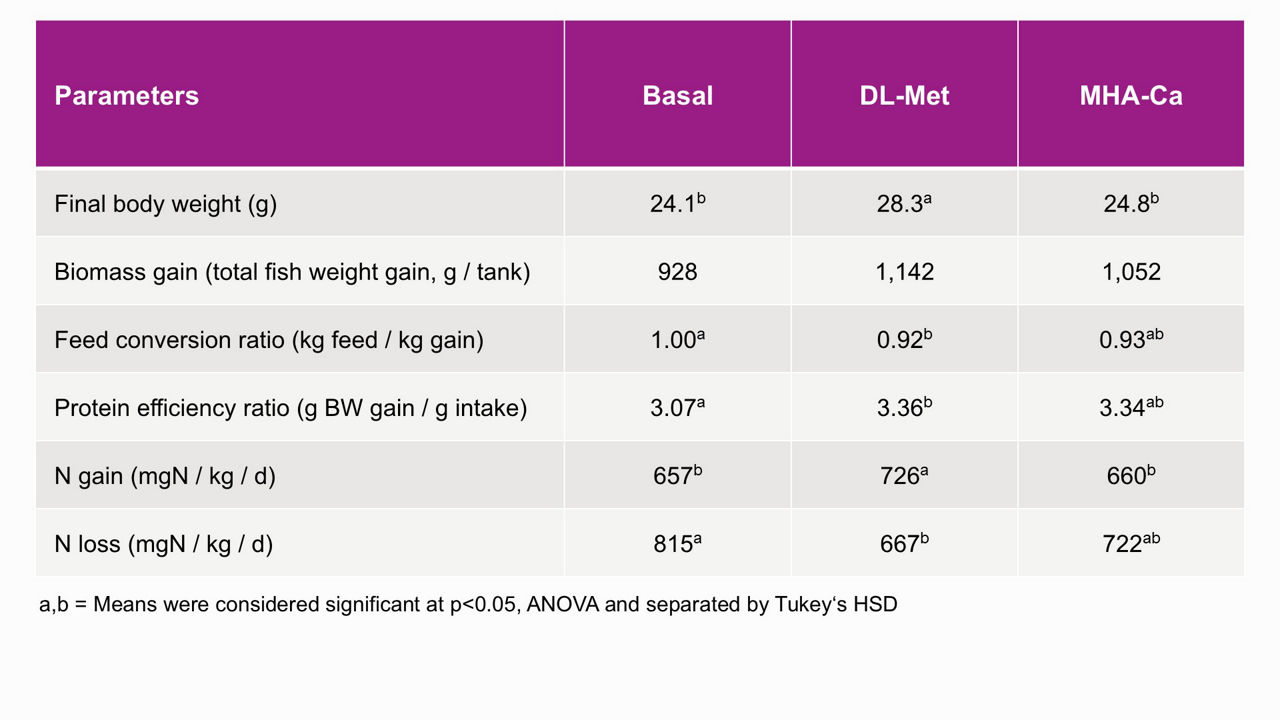

Growth performance of Nile tilapia reared under indoor tank conditions over 57 days
  • DLM diet exhibited the highest daily nitrogen gain (726 mg N/kg/day) and the lowest nitrogen loss (667 mg N/kg/day), both significantly better than the basal diet (p < 0.05).
  • MHA diet did not significantly improve nitrogen utilization compared to the basal diet and showed lower nitrogen gain compared to the DLM diet.
  • The DLM diet showed significant improvement in growth, feed conversion ratio (FCR) and protein efficiency ratio relative to the basal diet. The MHA diet did not differ from the basal diet and showed numerical improvements in the performances.
  • Overall the DLM diet produced better results relative to the basal and MHA diets demonstrating that DL-Met is the more effective methionine source for tilapia relative to MHA on an equimolar basis.

Trial II: Metabolic response of Nile tilapia to labelled Met sources

  • The amount of radioactivity (disintegrations per minute; DPM) present in the incubation water and different parts of fish (muscle, liver, viscera, and other parts) was determined (Figure 1).
  • In fish fed the DLM diet, the tracer was available to the Residual Free fraction (Free fractions in head, heart, kidney, bones and fins) faster than in MHA fed fish. Moreover, for the 6 h trial, the cumulative Met source bioavailability in Residual compartment was higher in DLM than in MHA fed fish.
  • At the end of the incubation period (six hours) a significantly higher amount of tracer was determined in the viscera and muscle protein fractions from DLM fed fish as well as in their livers and residual tissues (Figure 1 and 2; p < 0.05). This indicates a higher bioavailability of DLM compared with MHA when fed on equimolar basis.
  • MHA fed fish showed 2.4 times higher area under the curve relative to DLM fed fish for the incubation water. Higher amount of radioactivity present in the incubation water for the MHA fed fish indicates more MHA was evacuated (non-absorbed) and/or catabolized., elucidating why MHA was less deposited in the muscle compared with DLM (Figure 3).
  • In sum, more DLM was available in the muscle and different body parts for protein synthesis, and less DLM was catabolized or excreted compared with MHA.

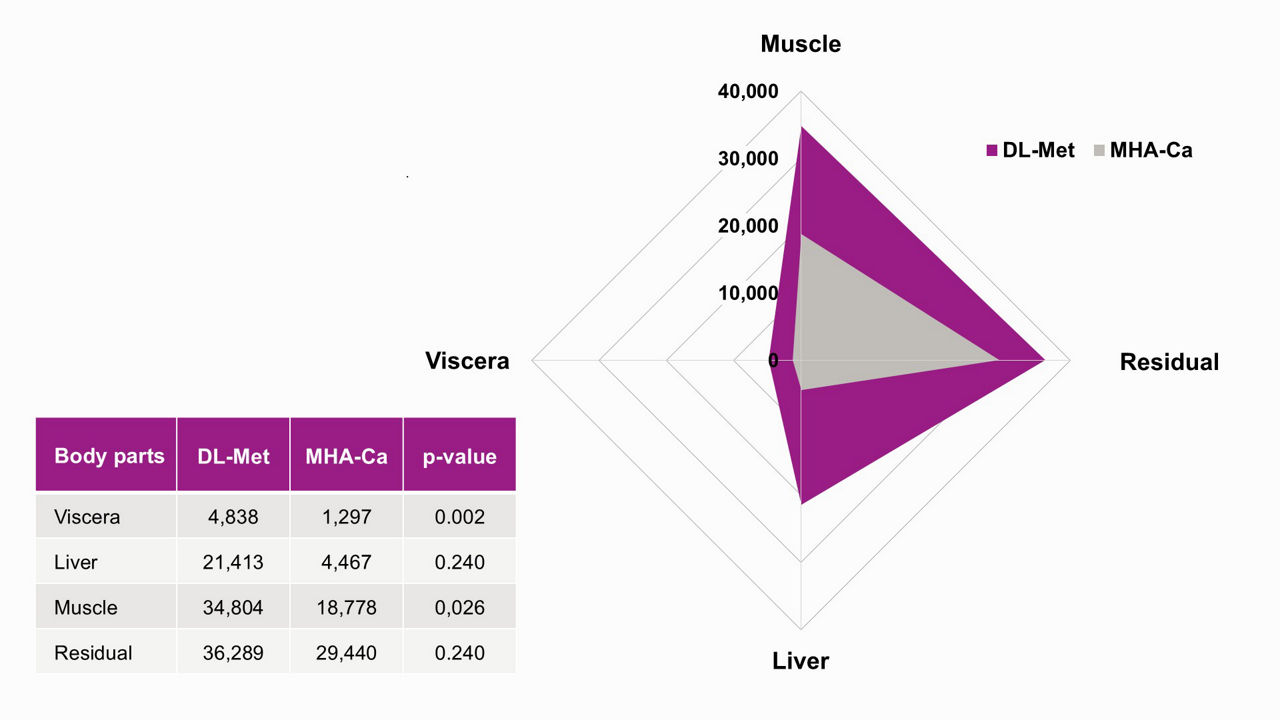

Radioactivity of labelled Met source as a part of protein fraction detected (DPM)
in different body parts at 6-h post feeding

Alternative image

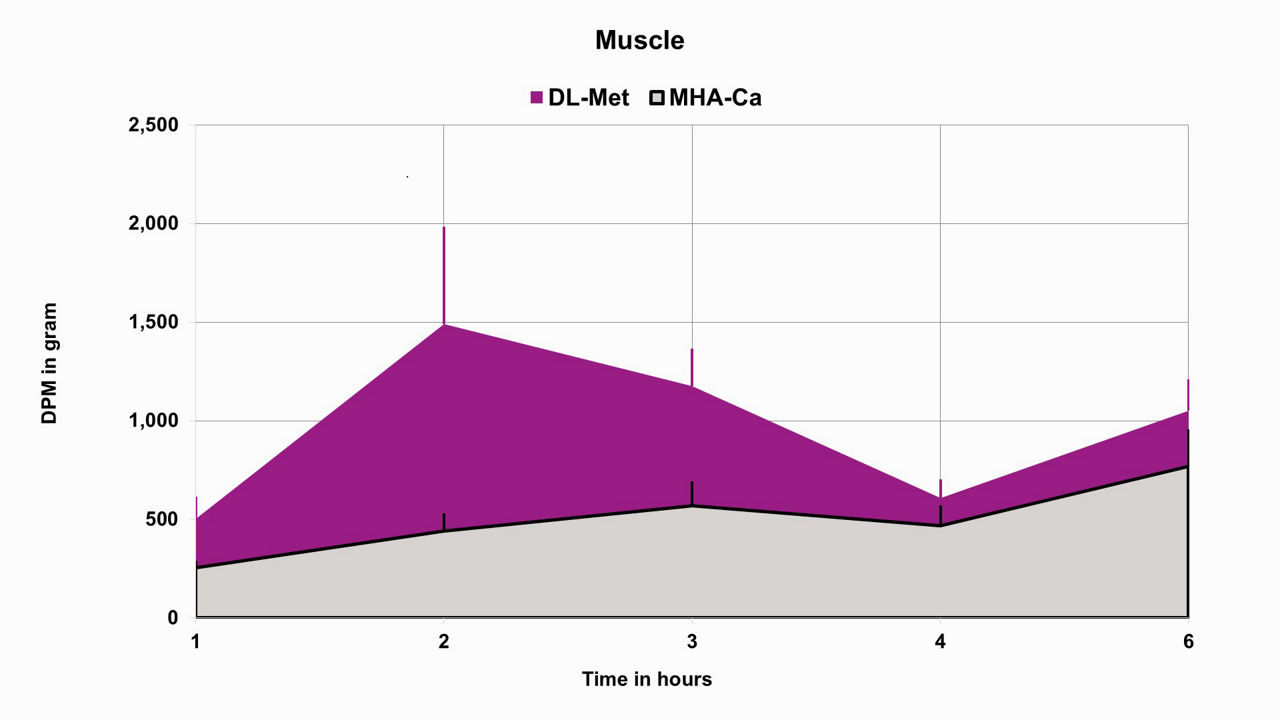

Radioactivity (DPM/g fish) of free labelled Met in muscle at 1–6 h post-feeding

Alternative image

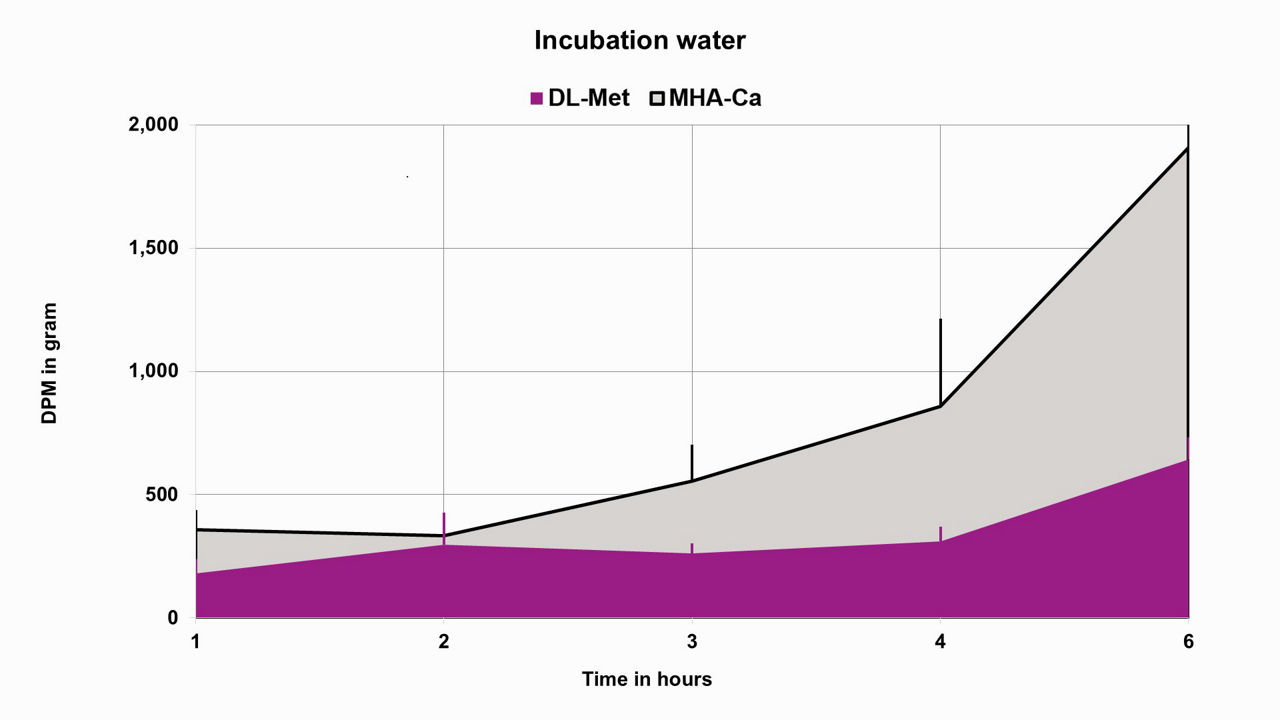

Radioactivity (DPM/g fish) of labelled Met in incubation water over 6 h

Alternative image
